F100// F80
F100// F80
Potent power. Reassuring reliability.

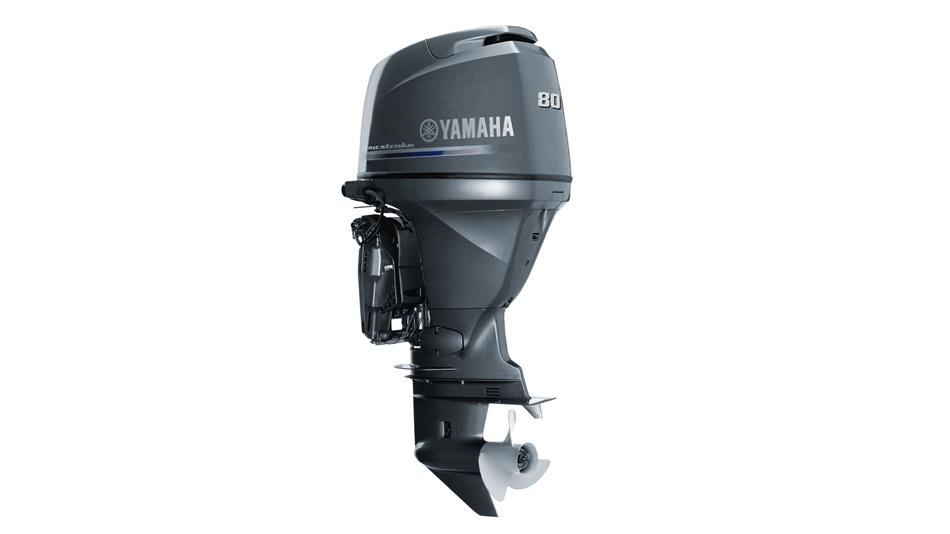

The F80 and F100 are amongst the most versatile and user-friendly outboards in this power sector. In fact, in terms of their sheer power-to-value ratio, they are very hard to beat.
Yamaha's latest 4-stroke technology means both models offer unmatched performance - thanks to a 16-valve engine with Double Overhead Camshaft (DOHC) for improved acceleration, advanced intake and exhaust system designs - and Yamaha's unique multi-point EFI (Electronic Fuel Injection)
A range of convenient features - including PrimeStart™, a high-output alternator, Digital Network Gauges and Yamaha's Wide Range Power Trim & Tilt system - gives you the confidence that you're always in full control.
Technical Specifications
| Engine type: | 4-stroke//4-stroke |
| Displacement: | 1,596 cm³//1,596 cm³ |
| No. of cylinders/configuration: | 4/In-line, 16-valve, DOHC//4/In-line, 16-valve, DOHC |
| Bore x stroke: | 79.0 mm x 81.4 mm//79.0 mm x 81.4 mm |
| Prop shaft output at mid range: | 58.8kW / 5,500 rpm//73.6kW / 5,500 rpm |
| Full throttle operating range: | 5,000 - 6,000 rpm//5,000 - 6,000 rpm |
| Lubrication system: | Wet sump//Wet sump |
| Fuel Induction System: | EFI//EFI |
| Ignition / advance system: | TCI//TCI |
| Starter system: | Electric with Prime Start™//Electric with Prime Start™ |
| Gear ratio: | 2.27 (25/11)//2.27 (25/11) |
| Recommended boat transom height: | L:536mm X:664mm//L:536mm X:664mm |
| Weight with propeller: | F80BETL: 170.0 kg, F80BETX: 173.0 kg//F80BETL: 170.0 kg, F80BETX: 173.0 kg |
| Oil pan capacity: | 3.7 litres//3.7 litres |
| Control: | Remote Control//Remote Control |
| Trim & tilt method: | Power Trim & Tilt//Power Trim & Tilt |
| Lighting Coil / Alternator: | 12V - 25A with rectifier/regulator//12V - 25A with rectifier/regulator |
| Tilt limitter (only for remote control specs): | Optional//Optional |
| Engine immobiliser: | YCOP//YCOP |
| Propeller: | Optional//Optional |
| Shallow Water Drive: | Standard//Standard |
| Digital Network Gauge (Round/Square): | Optional//Optional |
| Variable Trolling RPM: | With DN Gauges or m-f tiller handle//With DN Gauges or m-f tiller handle |
| Shift Dampener System (SDS): | Optional//Optional |
| Remark: | The kW data in this sheet is based on the ICOMIA 28 standard, measured at the prop shaft |
