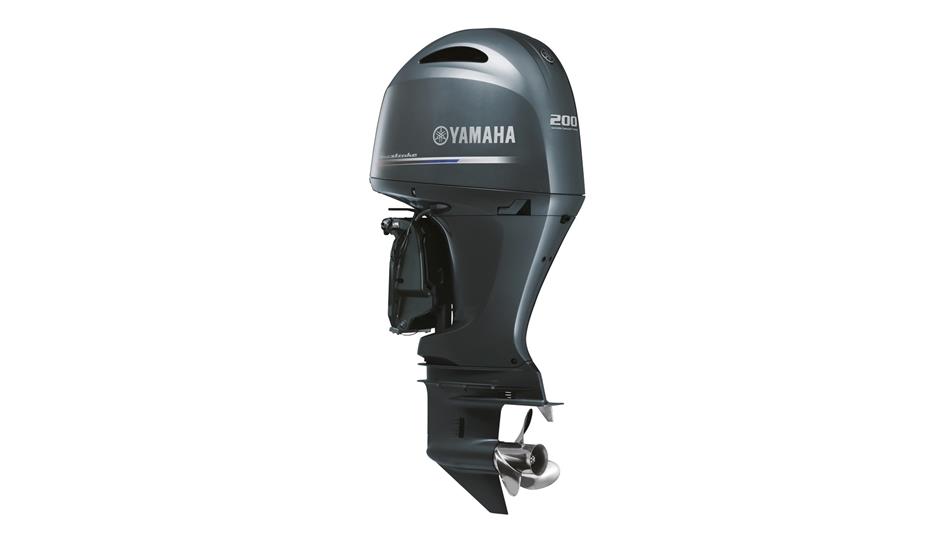

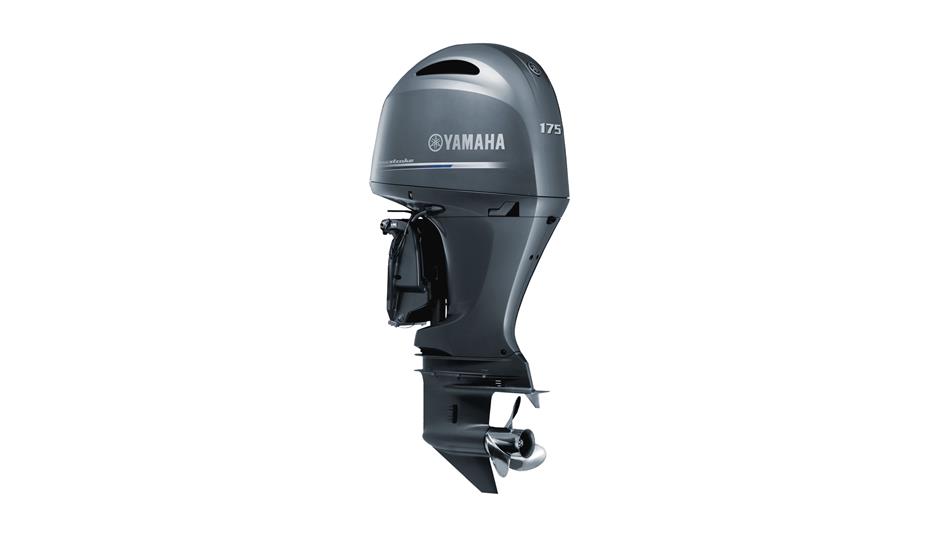

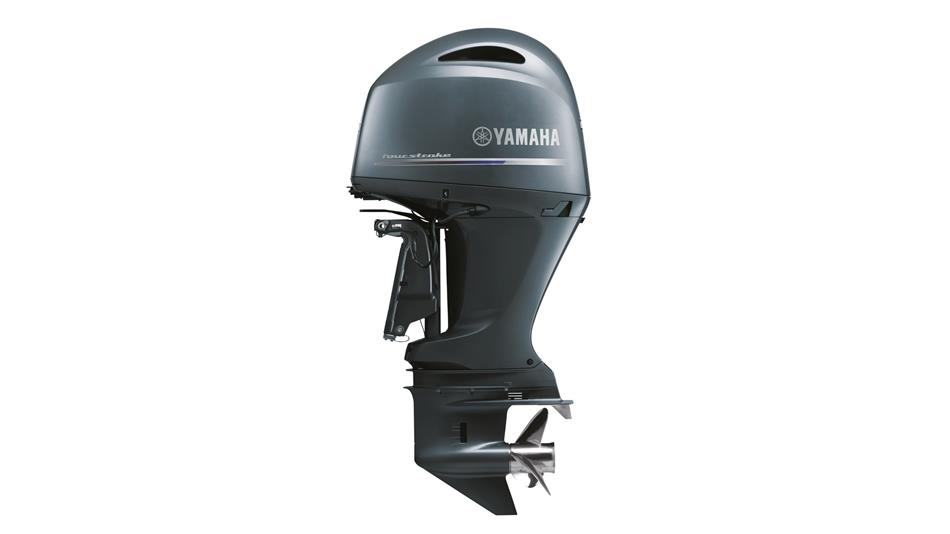

F200G // F200 // F175
F200G // F200 // F175
Two great ways to enjoy Straight-Four performance
For exceptional power and acceleration, these clean, quiet, smooth, EFI-equipped engines are pretty tough to beat. Add economy, reliability and all-round performance - and you have the perfect choice.
Yamaha's unique, fuel-efficient EFI system, micro-processor ECU, Variable Camshaft Timing (F200), clean-burn technology and noise reduction systems work seamlessly together - and the sophisticated diagnostic system shows engine and performance data via computer link, so maintenance is quick and simple.
Like all our EFI engines, the F200 and F175 can be linked to Yamaha's exclusive network system, which means you can choose from our wide range of digital gauges and instruments.
Technical Specifications
| Engine type: | 4-stroke//4-stroke//4-stroke |
| Displacement: | 2,785cc//2,785cc//2,785cc |
| No. of cylinders/configuration: | 4/In-line, 16-valve, DOHC with VCT//4/In-line, 16-valve, DOHC with VCT//4/In-line, 16-valve, DOHC with VCT |
| Bore x stroke: | 96.0 mm x 96.2 mm//96.0 mm x 96.2 mm//96.0 mm x 96.2 mm |
| Prop shaft output at mid range: | 147.1kW / 5,500 rpm//147.1kW / 5,500 rpm//128.7kW / 5,500 rpm |
| Full throttle operating range: | 5,000 - 6,000 rpm//5,000 - 6,000 rpm//5,000 - 6,000 rpm |
| Lubrication system: | Wet sump//Wet sump//Wet sump |
| Fuel Induction System: | EFI//EFI//EFI |
| Ignition / advance system: | TCI//TCI//TCI |
| Starter system: | Electric//Electric with Prime Start™//Electric with Prime Start™ |
| Gear ratio: | 1.86 (26/14)//1.86 (26/14)//1.86 (26/14) |
| Recommended boat transom height: | L:516mm X:643mm//L:516mm X:643mm//L:516mm X:643mm |
| Weight with propeller: | FL200GETX:227.0 kg//F200FETX:227.0 kg//F175AETL: 224.0 kg |
| Oil pan capacity: | 4.5 litres//4.5 litres//4.5 litres |
| Control: | Drive By Wire (DBW)//Remote Control//Remote Control |
| Trim & tilt method: | Power Trim & Tilt//Power Trim & Tilt//Power Trim & Tilt |
| Lighting Coil / Alternator: | 12V - 50A with rectifier/regulator//12V - 50A with rectifier/regulator//12V - 50A with rectifier/regulator |
| Tilt limitter (only for remote control specs): | Option//Option//Option |
| Engine immobiliser: | YCOP//YCOP//YCOP |
| Propeller: | Optional//Optional//Optional |
| Counter Rotation Model: | Available (ETX, ETU)//Available (ETX, ETU) |
| Shallow Water Drive: | Standard//Standard//Standard |
| Digital Network Gauge II (LCD Color): | Optional |
| Digital Network Gauge (Round/Square): | Optional//Optional//Optional |
| Variable Trolling RPM: | With DN Gauges or m-f tiller handle//With DN Gauges or m-f tiller handle//With DN Gauges or m-f tiller handle |
| Dual Battery Charging System: | Optional//Optional//Optional |
| Shift Dampener System (SDS): | Optional//Optional//Optional |
| Remark: | The kW data in this sheet is based on the ICOMIA 28 standard, measured at the prop shaft |
