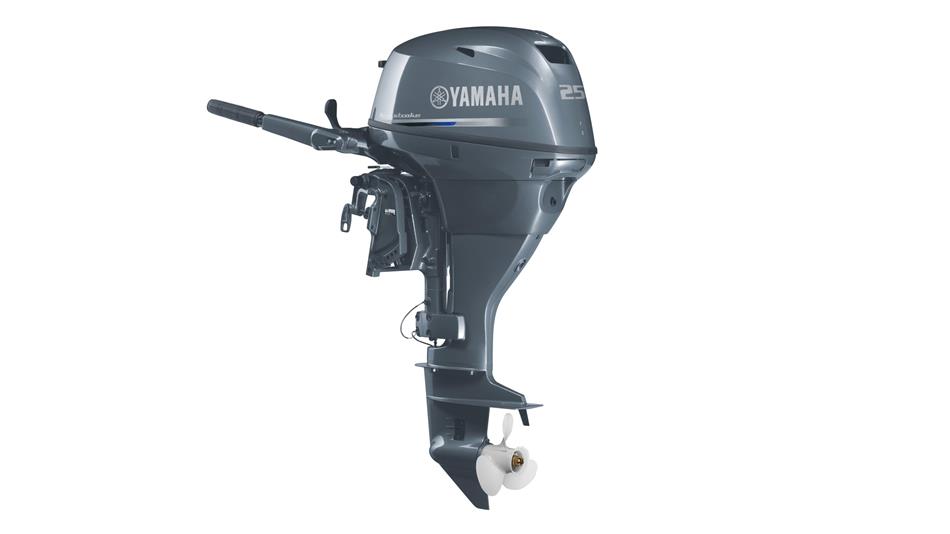

F25
A compact motor - but with serious power and style
Open up the throttle on the F25 and you'll understand why it's in a class of its own: a versatile, twin-cylinder 4-stroke, it offers big performance allied to a smooth ride. And while brilliant fuel economy and easy handling come as standard, the engine is also kinder to the environment, with reduced exhaust emissions.
Extra benefits, normally only found on larger engines, include computer-controlled ignition, a special light-load starting system, and a large-volume silencer.
With single-lever steering friction adjustment, a high-output alternator and the Wide Range Power Trim & Tilt system option, the F25 makes a great choice for commercial, professional or leisure use.
Technical Specifications
| Engine type: | 4-stroke |
| Displacement: | 498 cm³ |
| No. of cylinders/configuration: | 2/In-line, SOHC |
| Bore x stroke: | 65.0 mm x 75.0 mm |
| Prop shaft output at mid range: | 18.4kW / 5,500 rpm |
| Full throttle operating range: | 5,000 - 6,000 rpm |
| Lubrication system: | Wet sump |
| Fuel Induction System: | 1-Carb |
| Ignition / advance system: | CDI |
| Starter system: | Manual (MH), Electric (E, ET) with Prime Start™ |
| Gear ratio: | 2.08 (27/13) |
| Recommended boat transom height: | S:423mm L:550mm |
| Weight with propeller: | F25DMHS: 77.0 kg, F25DMHL: 78.0 kg, F25DES: 78.0 kg, F25DEL: 79.0 kg, F25DETL:82.0 kg |
| Fuel tank capacity: | separate, 25 litres |
| Oil pan capacity: | 1.4 litres |
| Control: | Tiller handle (MH), Remote control (E, ET) |
| Trim & tilt method: | Power Trim & Tilt (ET), Manual Tilt (MH, E) |
| Lighting Coil / Alternator: | 12V - 14A with rectifier/regulator |
| Propeller: | Optional |
| Shallow Water Drive: | Standard |
| Remark: | The kW data in this sheet is based on the ICOMIA 28 standard, measured at the prop shaft |
