F300 // F250 // F225
F300 // F250 // F225
The ultimate V6 power for your offshore adventures

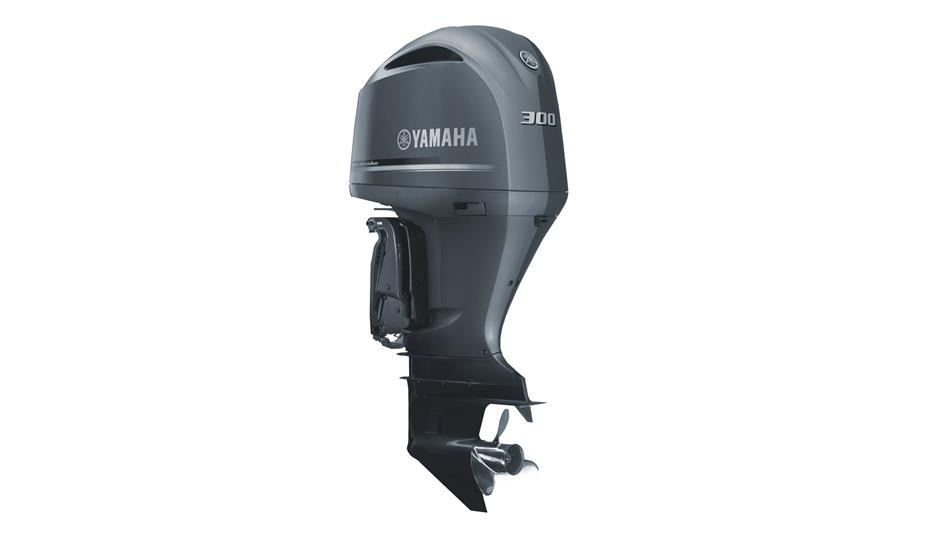

The F225, F250 & F300 outboards represent the pinnacle of Yamaha's latest-generation marine technology. Designed for the demanding offshore environment, these light, compact V6 engines are the ultimate powerhouses to have behind you on your watersports adventures.
For clean, smooth performance, maximum fuel efficiency and easy starting, the advanced 24-valve DOHC engine features EFI (Electronic Fuel Injection) as well as VCT (Variable Camshaft Timing). Combining technology with style, the sleek, compact design speaks for itself.
Meanwhile, at the helm, Yamaha's 'drive-by-wire' electronic throttle and shift delivers the smoothest, most precise control you'll ever experience.
Technical Specifications
| Engine type: | 4-stroke//4-stroke//4-stroke |
| Displacement: | 4,169 cm³//4,169 cm³//4,169 cm³ |
| No. of cylinders/configuration: | V6 (60°), 24-valve, DOHC with VCT//V6 (60°), 24-valve, DOHC with VCT//V6 (60°), 24-valve, DOHC with VCT |
| Bore x stroke: | 96.0 mm x 96.0 mm//96.0 mm x 96.0 mm//96.0 mm x 96.0 mm |
| Prop shaft output at mid range: | 220.7kW / 5,500 rpm//183.8kW / 5,500 rpm//165.5kW / 5,500 rpm |
| Full throttle operating range: | 5,000 - 6,000 rpm//5,000 - 6,000 rpm//5,000 - 6,000 rpm |
| Lubrication system: | Wet sump//Wet sump//Wet sump |
| Fuel Induction System: | EFI//EFI//EFI |
| Ignition / advance system: | TCI//TCI//TCI |
| Starter system: | Electric with Prime Start™//Electric with Prime Start™//Electric with Prime Start™ |
| Gear ratio: | 1.75 (21/12)//1.75 (21/12)//1.75 (21/12) |
| Recommended boat transom height: | X:643mm U:770mm//X:643mm U:770mm//X:643mm U:770mm |
| Weight with propeller: | F300BETX: 260.0 kg//F250DETX: 260.0 kg//F225FETX: 260.0 kg |
| Weight with propeller: | FL300BETX: 260.0 kg//FL300BETX: 260.0 kg//FL300BETX: 260.0 kg |
| Weight with propeller: | F300BETU: 268.0 kg//F250DETU: 268.0 kg//FETU: 268.0 kg |
| Weight with propeller: | FL300BETU: 268.0 kg//FL250DETU: 268.0// |
| Oil pan capacity: | 6.3 litres//6.3 litres//6.3 litres |
| Control: | Drive By Wire (DBW)//Drive By Wire (DBW)//Drive By Wire (DBW) |
| Trim & tilt method: | Power Trim & Tilt//Power Trim & Tilt//Power Trim & Tilt |
| Lighting Coil / Alternator: | 12V - 70A with rectifier/regulator//12V - 70A with rectifier/regulator//12V - 70A with rectifier/regulator |
| Tilt limitter (only for remote control specs): | Option//Option//Option |
| Engine immobiliser: | YCOP//YCOP//YCOP |
| Propeller: | Optional//Optional//Optional |
| Counter Rotation Model: | Available (ETX, ETU)//Available (ETX, ETU)//Available (ETX) |
| Shallow Water Drive: | Standard//Standard//Standard |
| Digital Network Gauge II (LCD Color): | Optional//Optional//Optional |
| Digital Network Gauge (Round/Square): | Optional//Optional//Optional |
| Variable Trolling RPM: | With DN Gauges or m-f tiller handle//With DN Gauges or m-f tiller handle//With DN Gauges or m-f tiller handle |
| Dual Battery Charging System: | Optional//Optional//Optional |
| Shift Dampener System (SDS): | Optional//Optional//Optional |
| Remark: | The kW data in this sheet is based on the ICOMIA 28 standard, measured at the prop shaft |
