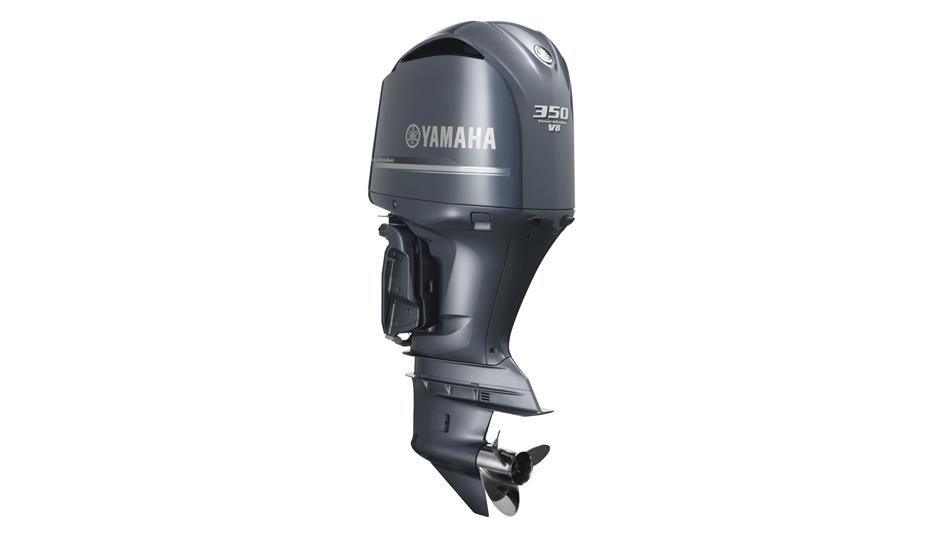

F350
The unique V8 power solution for larger boats
Created for the heavy-duty demands of large offshore boats, the 5.3 litre Yamaha F350 is a mighty technological pioneer. This 4-stroke V8 is the world's largest displacement outboard, combining unique levels of power and torque with the refined performance required by today's sophisticated hull designs.
Yamaha's EFI (Electronic Fuel Injection) delivers smooth performance and maximum fuel efficiency across the power band - and despite its size and power, Yamaha's weight-saving technologies have made the F350 surprisingly light and compact too.
With the PrimeStart™ system, starting is as easy as in your car - and digital drive-by-wire technology keeps you in precise control.
Technical Specifications
| Engine type: | 4-stroke |
| Displacement: | 5,330 cm³ |
| No. of cylinders/configuration: | 60°-V8, 32-valve, DOHC |
| Bore x stroke: | 94.0 mm x 96.0 mm |
| Prop shaft output at mid range: | 257.4kW / 5,500 rpm |
| Full throttle operating range: | 5,000 - 6,000 rpm |
| Lubrication system: | Wet sump |
| Fuel Induction System: | EFI |
| Ignition / advance system: | TCI |
| Starter system: | Electric with Prime Start™ |
| Gear ratio: | 1,73 (26/15) |
| Recommended boat transom height: | X:637mm U:764mm |
| Weight with propeller: | 350AETX: 356.0 kg, FL350AETX: 356.0 kg, F350AETU: 364.0 kg, FL350AETU: 364.0 kg |
| Oil pan capacity: | 6.5 litres |
| Control: | Drive By Wire (DBW) |
| Trim & tilt method: | Power Trim & Tilt |
| Lighting Coil / Alternator: | 12V - 49A with rectifier/regulator |
| Tilt limitter (only for remote control specs): | Standard |
| Engine immobiliser: | YCOP |
| Propeller: | Optional |
| Counter Rotation Model: | Available (ETX, ETU) |
| Shallow Water Drive: | Standard |
| Digital Network Gauge II (LCD Color): | Optional |
| Digital Network Gauge (Round/Square): | Optional |
| Variable Trolling RPM: | With DN Gauges or m-f tiller handle |
| Dual Battery Charging System: | Optional |
| Shift Dampener System (SDS): | Optional |
| Remark: | The kW data in this sheet is based on the ICOMIA 28 standard, measured at the prop shaft |
