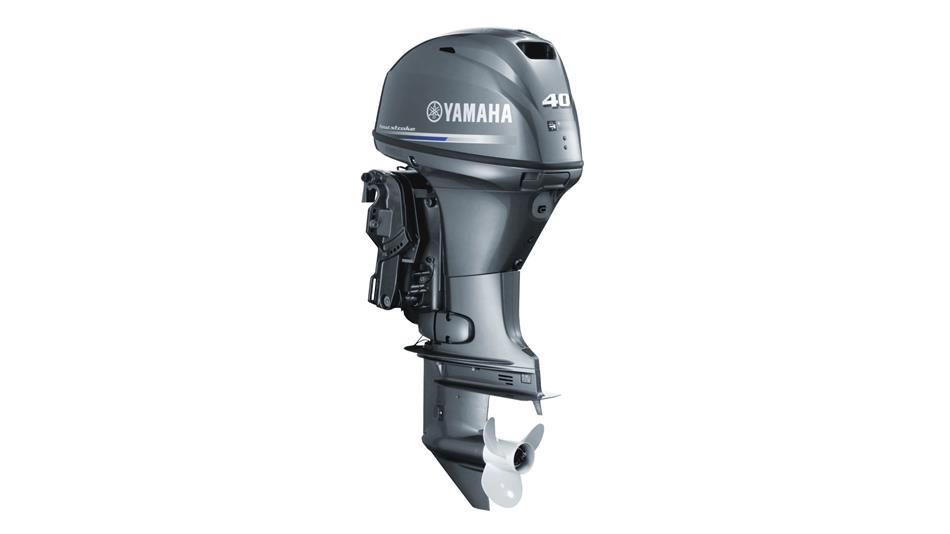

F40// F30
F40// F30
With these engines, peace of mind is standard
The lightweight F40 and F30 are designed for simple installation and ease of use, but they're packed with reliable, dependable power too.
Yamaha's Electronic Fuel Injection system (EFI) delivers impressive power at high speeds, plus real mid-range punch and torque - along with outstanding economy. PrimeStart™ makes starting up as effortless as it is in your car - and since this is a Yamaha, that means first time, every time. Our unique Wide Range Power Trim & Tilt system then lets you take full control.
Finally, for that little extra peace of mind, Yamaha's Customer Outboard Protection (Y-COP) system protects your engine with a car-style remote-control immobiliser.
Technical Specifications
| Engine type: | 4-stroke//4-stroke |
| Displacement: | 747 cm³//747 cm³ |
| No. of cylinders/configuration: | 3/In-line, SOHC//4/3/In-line, SOHC |
| Bore x stroke: | 65.0 mm x 75.0 mm//65.0 mm x 75.0 mm |
| Prop shaft output at mid range: | 29.4kW / 5,500 rpm//22.1kW / 5,500 rpm |
| Full throttle operating range: | 5,000 - 6,000 rpm//5,000 - 6,000 rpm |
| Lubrication system: | Wet sump//Wet sump |
| Fuel Induction System: | EFI//EFI |
| Ignition / advance system: | CDI//CDI |
| Starter system: | Electric with Prime Start™//Electric with Prime Start™ |
| Gear ratio: | 2.00 (26/13)//2.00 (26/13) |
| Recommended boat transom height: | S:414mm L:536mm//S:414mm L:536mm |
| Weight with propeller: | F40FEDL: 95.0 kg, F40FEHDS: 97.0 kg, F40FEHDL: 102.0 kg, F40FETS: 94.0 kg, F40FETL: 98.0 kg//F30BEHDL: 102.0 kg, F30BETS: 94.0 kg, F30BETL: 98.0 kg |
| Fuel tank capacity: | separate, 25 litres//separate, 25 litres |
| Oil pan capacity: | 1.7 litres//1.7 litres |
| Control: | Tiller handle (EHD), Remote control (ET + ED)//Tiller handle (EHD), Remote control (ET + ED) |
| Trim & tilt method: | Power Trim & Tilt (ET), Hydro tilt assist (ED + EHD)//Power Trim & Tilt (ET), Hydro tilt assist (EHD) |
| Lighting Coil / Alternator: | 12V - 17A with rectifier/regulator//12V - 17A with rectifier/regulator |
| Engine immobiliser: | YCOP//YCOP |
| Propeller: | Optional//Optional |
| Shallow Water Drive: | Standard//Standard |
| Digital Network Gauge (Round/Square): | Optional//Optional |
| Variable Trolling RPM: | With DN Gauges or m-f tiller handle//With DN Gauges or m-f tiller handle |
| Remark: | The kW data in this sheet is based on the ICOMIA 28 standard, measured at the prop shaft |
