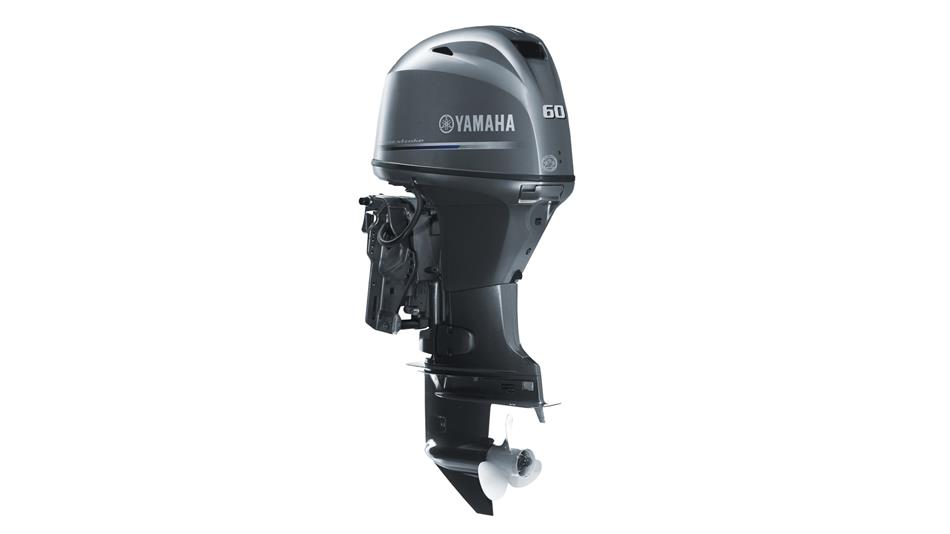

F60// F50
F60// F50
Maximum enjoyment. Minimum emissions.
Ideal for towing skiers or wakeboarders, the compact F60 and F50 let you have fun on the water with a clear conscience - they're the cleanest and most economical engines in their class.
Yamaha's Electronic Fuel Injection system (EFI) ensures cleaner performance and efficient consumption of fuel, all in an engine that delivers impressive power, serious torque in the mid-ranges and high top speeds.
The F60 and F50 also include a number of unique Yamaha features, each designed to provide a smooth, comfortable and enjoyable ride. Among them are the Wide Range Power Trim & Tilt system, giving you full, relaxed control - and PrimeStart™ ignition - as effortless as starting a car.
Technical Specifications
| Engine type: | 4-stroke//4-stroke |
| Displacement: | 1,596 cm³//1,596 cm³ |
| No. of cylinders/configuration: | 4/In-line, 16-valve, DOHC//4/In-line, 16-valve, DOHC |
| Bore x stroke: | 79.0 mm x 81.4 mm//79.0 mm x 81.4 mm |
| Prop shaft output at mid range: | 58.8kW / 5,500 rpm//73.6kW / 5,500 rpm |
| Full throttle operating range: | 5,000 - 6,000 rpm//5,000 - 6,000 rpm |
| Lubrication system: | Wet sump//Wet sump |
| Fuel Induction System: | EFI//EFI |
| Ignition / advance system: | TCI//TCI |
| Starter system: | Electric with Prime Start™//Electric with Prime Start™ |
| Gear ratio: | 2.27 (25/11)//2.27 (25/11) |
| Recommended boat transom height: | L:536mm X:664mm//L:536mm X:664mm |
| Weight with propeller: | F80BETL: 170.0 kg, F80BETX: 173.0 kg//F80BETL: 170.0 kg, F80BETX: 173.0 kg |
| Oil pan capacity: | 3.7 litres//3.7 litres |
| Control: | Remote Control//Remote Control |
| Trim & tilt method: | Power Trim & Tilt//Power Trim & Tilt |
| Lighting Coil / Alternator: | 12V - 25A with rectifier/regulator//12V - 25A with rectifier/regulator |
| Tilt limitter (only for remote control specs): | Optional//Optional |
| Engine immobiliser: | YCOP//YCOP |
| Propeller: | Optional//Optional |
| Shallow Water Drive: | Standard//Standard |
| Digital Network Gauge (Round/Square): | Optional//Optional |
| Variable Trolling RPM: | With DN Gauges or m-f tiller handle//With DN Gauges or m-f tiller handle |
| Shift Dampener System (SDS): | Optional//Optional |
| Remark: | The kW data in this sheet is based on the ICOMIA 28 standard, measured at the prop shaft |
