F6// F5// F4
F6// F5// F4
Easy-to-carry - and so easy to enjoy

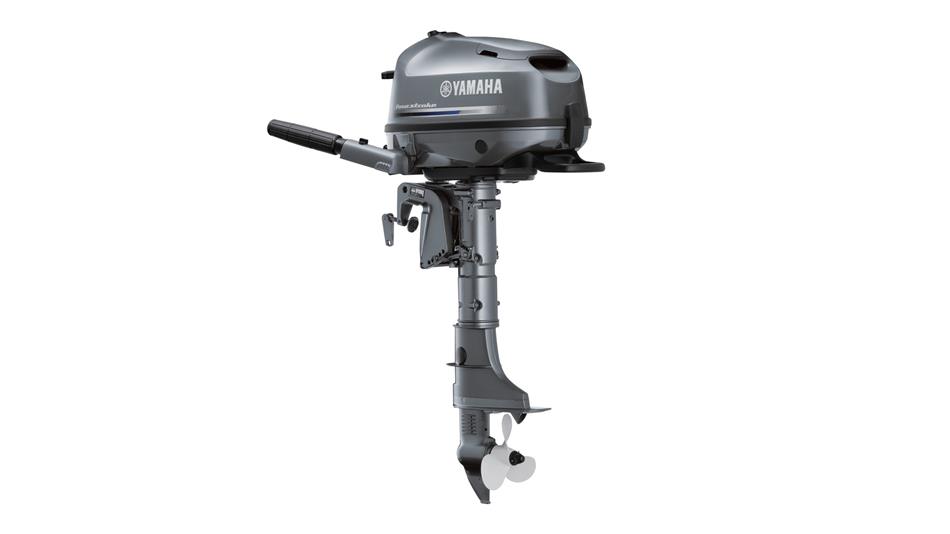

These engines, with their smart, stylish looks, are so light and easy to handle, that carrying one between the shore and the deck of your main boat is a breeze. The F4, F5 and F6 are convenient to store and use, offering the power you need to hit the water with confidence.
Compact size, large carrying handles and built-in fuel tanks enhance their portability - and start-up is easy with Yamaha's CDI Ignition System. Low fuel consumption, simple controls and low noise and vibration levels, along with Yamaha reliability, come as standard.
For families wanting to get on the water easily - or a yacht owner wanting a handy auxiliary - the F4, F5 and F6 offer the smart solution.
Technical Specifications
| Engine type: | 4-stroke//4-stroke//4-stroke |
| Displacement: | 139 cm³//139 cm³//139 cm³ |
| No. of cylinders/configuration: | 1OHV//1OHV//1OHV |
| Bore x stroke: | 62.0 mm x 46.0 mm//62.0 mm x 46.0 mm//62.0 mm x 46.0 mm |
| Prop shaft output at mid range: | 4.4kW / 5,000 rpm//3.7kW / 5,000 rpm//2.9kW / 4,500 rpm |
| Full throttle operating range: | 4,500 - 5,500 rpm//4,500 - 5,500 rpm//4,000 - 5,000 rpm |
| Lubrication system: | Wet sump//Wet sump//Wet sump |
| Fuel Induction System: | 1-Carb//1-Carb//1-Carb |
| Ignition / advance system: | CDI//CDI//CDI |
| Starter system: | Manual//Manual//Manual |
| Gear ratio: | 2.08 (27/13)//2.08 (27/13)//2.08 (27/13) |
| Recommended boat transom height: | S:440mm L:568mm//S:440mm L:568mm//S:440mm L:568mm |
| Weight with propeller: | F6CMHS: 27.0 kg, F6CMHL: 28.0 kg//F5AMHS: 27.0 kg, F5AMHL: 28.0 kg//F4BMHS: 27.0 kg, F4BMHL: 28.0 kg |
| Fuel tank capacity: | 1.1 litres (Built-in fuel tank) or optional seperate fuel tank//1.1 litres (Built-in fuel tank) or optional seperate fuel tank//1.1 litres (Built-in fuel tank) or optional seperate fuel tank |
| Oil pan capacity: | 0.6 litres//0.6 litres//0.6 litres |
| Control: | Tiller handle//Tiller handle//Tiller handle |
| Trim & tilt method: | Manual//Manual//Manual |
| Lighting Coil / Alternator: | 12V - 6A *optional//12V - 6A *optional//12V - 6A *optional |
| Propeller: | Included//Included |
| Shallow Water Drive: | Standard//Standard |
| Remark: | The kW data in this sheet is based on the ICOMIA 28 standard, measured at the prop shaft |
