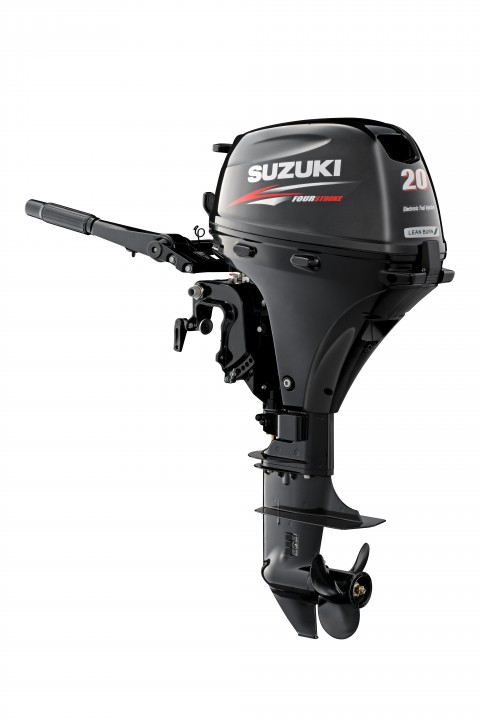

DF20A

A world first with battery-less fuel injection

When you want to get up and go, you should be able to. And with Suzuki's portable outboards, you can.

State-of-the-art designs make the new DF20A and DF15A among the most technologically advanced portable outboards around. The DF20A and DF15A are the world's first outboards in the 20hp and 15hp classes equipped with a battery-less fuel injection system that offers quick, easy starts and cleaner, fuel efficient operation.

Our engineers took a bold approach in building all-new fuel injection system components that are smaller and lighter than those found in previous systems. This keeps the overall weight of the DF20A lower than any other outboard in the four stroke 20hp class. By adding the proven Lean Burn Control technology to their design, these outboards deliver remarkable fuel economy and reduced emissions throughout their operating range.

Technical Specifications

Shaft Length: 508mm (20in)
Weight: 49.0Kg
Bore X Stroke: 60.4 x 57mm
Starting System: Electric and Manual
Engine Type: OHC 4-Valve
Fuel Delivery System: Battery-less Electronic Fuel Injection
No. Of Cylinders: In-line 2
Piston Displacement cm3: 327cc
Maximum Output: 14.7kW
Full Throttle Operating Range: 5,300 - 6,300rpm
Steering: Tiller
Oil Pan Capacity: 1.0Lit.
Ignition System: Digital CDI
Alternator: 12V 12A
Engine Mounting: Shear Mount
Trim method: Manual Trim & Tilt
Gear Ratio: 2.08:1
Gear Shift: F-N-R
Exhaust: Through Prop Hub Exhaust
