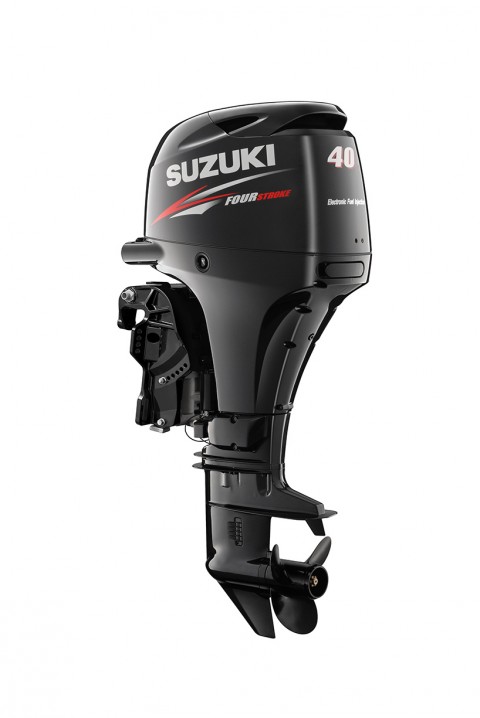

DF40A
DF40A
2011 NMMA Innovation Award Winner - the new DF40A Lean Burn
With the DF50A and DF40A our engineers have combined a high performance DOHC (dual overhead cam) engine with our Lean Burn Control System to create an outboard that delivers superior power and performance along with top-level fuel economy.
Features include: High performance DOHC 12-valve engine Lean Burn Control System delivering remarkable fuel-efficient operation Electronic Fuel Injection delivering optimum performance Maintenance-free timing chain Large capacity 19A alternator
We were proud to be the sole supplier of marine outboard motors to the London 2012 Olympic & Paralympic Games Sailing Regatta, with the DF40A being one of the models used for this prestigious event.
Technical Specifications
| Shaft Length: | 508mm (20in) |
| Weight: | 104Kg |
| Bore X Stroke: | 72.5 x 76.0mm |
| Propeller Section (pitch): | 9" |
| Starting System: | Electric |
| Engine Type: | DOHC 12-Valve |
| Fuel Delivery System: | Multi Point Sequential Electronic Fuel Injection |
| No. Of Cylinders: | 3 |
| Piston Displacement cm3: | 941cc |
| Maximum Output: | 29.4kW |
| Full Throttle Operating Range: | 5,000 - 6,000rpm |
| Steering: | Remote |
| Oil Pan Capacity: | 2.7Lit. |
| Ignition System: | Fully-transistorised |
| Alternator: | 12V 19A |
| Engine Mounting: | Shear Mount |
| Trim method: | Power Trim and Tilt |
| Gear Ratio: | 2.27:1 |
| Gear Shift: | F-N-R |
| Exhaust: | Through Prop Hub Exhaust |
