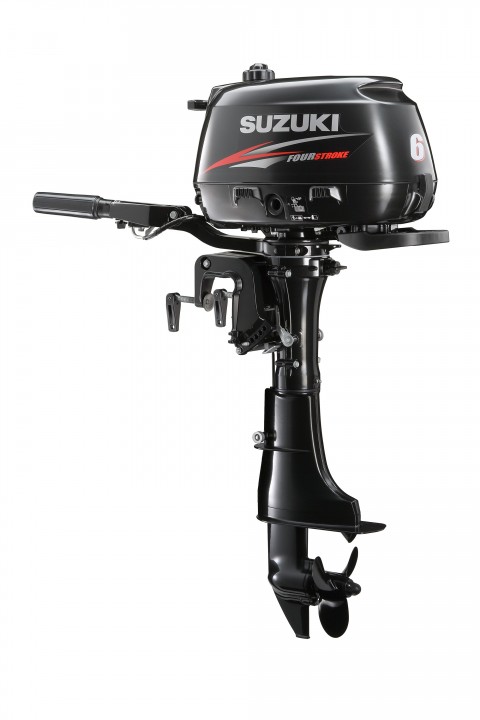

The DF4, DF5 and DF6 make the advantages of advanced clean burning, fuel saving four stroke technology available to the portable engine user.
Ease of operation and handling ranked very highly in the design criteria and power is provided by a single cylinder OHV engine with a displacement of 138cc. Combined with the light weight this produces excellent low to mid range torque and fast acceleration. A digital capacitor discharge ignition system combines the ignition coil and control processor into a corrosion resistant single unit which produces precise control of the ignition timing, gives stable idling and has a built in rev limiter. The tiller handle is mounted on the steering bracket allowing the operator to sit well forward improving weight distribution. Other features include 180 degree steering providing good manoeuvrability even in shallow water drive, a 1.5 litre integral fuel tank and a large carrying handle.
Shaft Length: | 508mm (20in) |
Weight: | 26.0Kg |
Bore X Stroke: | 62x46mm |
Propeller Section (pitch): | 6"-7" |
Starting System: | Manual |
Engine Type: | OHV |
Fuel Delivery System: | Carburetor |
No. Of Cylinders: | 1 |
Piston Displacement cm3: | 138cc |
Maximum Output: | 4.4kW |
Full Throttle Operating Range: | 4,750 - 5,750rpm |
Steering: | Tiller |
Oil Pan Capacity: | 0.7Lit. |
Fuel Tank Capacity: | 1.5 Lit. |
Ignition System: | Digital CDI |
Alternator: | 12V 6A(OP.) |
Engine Mounting: | Bushing Type |
Trim method: | Manual Trim & Tilt |
Gear Ratio: | 1.92:1 |
Gear Shift: | F-N-R |
Exhaust: | Above Prop Exhaust |
