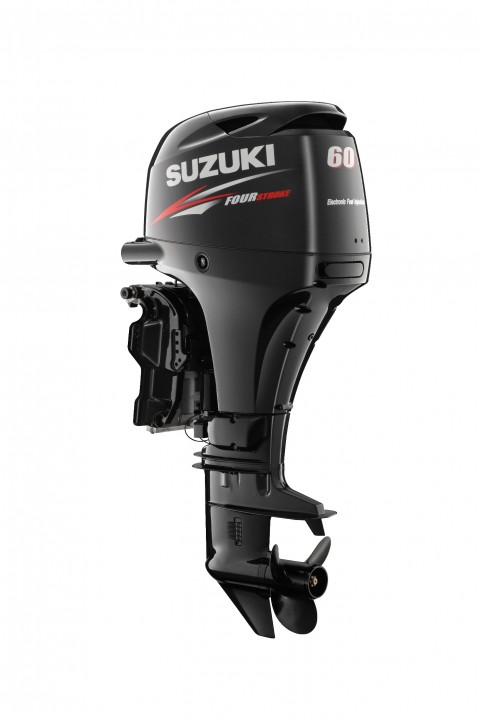

DF60A
DF60A
Compact, lightweight and fuel-efficient - the new generation DF60A.
The DF60A has been designed to deliver fuel-efficient operation in a compact and lightweight outboard. Utilising many of the advancements and achievements that we have pioneered over the last decade in designing and developing four stroke outboards, our engineers have produced a sleek formed outboard that ranks top in the 60hp class for its compact size and light weight.
Powering the DF60A is an all-new three cylinder engine with a DOHC powerhead and four valves per cylinder. This high performance engine is combined with Suzuki's Lean Burn Control System to deliver high-tech performance with efficient operation and top-level fuel economy.
Technical Specifications
| Shaft Length: | 635mm (25in) |
| Weight: | 104Kg |
| Bore X Stroke: | 72.5 x 76.0mm |
| Propeller Section (pitch): | 9" |
| Starting System: | Electric |
| Engine Type: | DOHC 12-Valve |
| Fuel Delivery System: | Multi Point Sequential Electronic Fuel Injection |
| No. Of Cylinders: | 3 |
| Piston Displacement cm3: | 941cc |
| Maximum Output: | 44.1kW |
| Full Throttle Operating Range: | 5300 - 6300rpm |
| Steering: | Remote |
| Oil Pan Capacity: | 2.7Lit. |
| Ignition System: | Fully-transistorised |
| Alternator: | 12V 19A |
| Engine Mounting: | Shear Mount |
| Trim method: | Power Trim and Tilt |
| Gear Ratio: | 2.27:1 |
| Gear Shift: | F-N-R |
| Exhaust: | Through Prop Hub Exhaust |
| In The Box | Includes white trim gauge, multi-funtion tacho, fuel tank, side mount control box & aluminium propeller |
